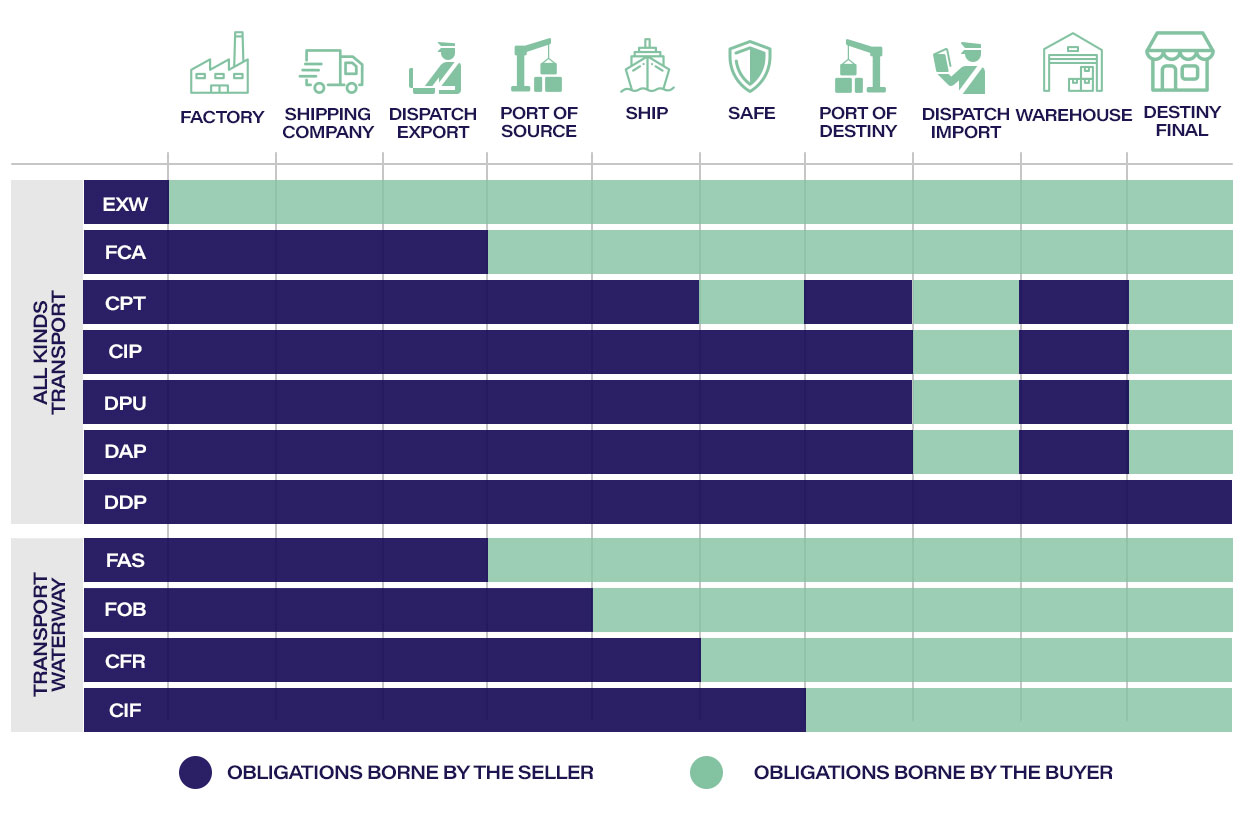

Incoterms 2020 - International Trade Terms

Types of Marine Containers
Click on the blocks for more information

REEFER – 20’ e 40’

When shut off, this container is also known as NOR.

20' 40'
INTERNAL LENGTH (mm) 5.460 11.550
INTERNAL WIDTH (mm) 2.240 2.250
INTERNAL HEIGHT (mm) 2.225 2.215
DOOR WIDTH 2.240 2.250
DOOR HEIGHT 2.180 2.160
CUBAGE (m3) 28,3 -
MAXIMUM WEIGHT (kg) 25.400 32.500
TARE (kg) 2.870 4.535
CARGO (kg) 22.530 27.965

HIGH CUBE (HC) – 40’

For cargoes of large volume.

20' 40'
INTERNAL LENGTH (mm) - 12.033
INTERNAL WIDTH (mm) - 2.352
INTERNAL HEIGHT (mm) - 2.694
DOOR WIDTH - 2.340
DOOR HEIGHT - 2.580
CUBAGE (m3) 76,3 -
MAXIMUM WEIGHT (kg) - 30.480
TARE (kg) - 3.800
CARGO (kg) - 26.68

OPEN TOP - 20’ e 40'

For cargoes that exceed normal height dimensions; which need to be loaded over the top or through a side entrance, over the top, with the aid of cranes.

20' 40'
INTERNAL LENGTH (mm) 5.889 12.044
INTERNAL WIDTH (mm) 2.335 2.350
INTERNAL HEIGHT (mm) 2.312 2.374
DOOR WIDTH 2.340 2.336
DOOR HEIGHT 2.225 2.287
CUBAGE (m3) 31,8 66,30
MAXIMUM WEIGHT (kg) 24.000 30.480
TARE (kg) 2.020 3.980
CARGO (kg) 21.980 26.500

STANDARD – 20’ e 40'

Suitable for general cargoes.

20' 40'
INTERNAL LENGTH (mm) 5.900 12.033
INTERNAL WIDTH (mm) 2.352 2.352
INTERNAL HEIGHT (mm) 2.386 2.389
DOOR WIDTH 2.340 2.340
DOOR HEIGHT 2.280 2.275
CUBAGE (m3) 33,1 67,6
MAXIMUM WEIGHT (kg) 24.000 30.480
TARE (kg) 2.240 3.730
CARGO (kg) 21.760 26.750

PLATAFORM – 20’ e 40’

High-weight and irregular cargoes.

20' 40'
INTERNAL LENGTH (mm) 6.058 12.192
INTERNAL WIDTH (mm) 2.438 2.238
INTERNAL HEIGHT (mm) - -
DOOR WIDTH - -
DOOR HEIGHT - -
CUBAGE (m3) - -
MAXIMUM WEIGHT (kg) 26.900 40.000
TARE (kg) 1.500 4.220
CARGO (kg) 25.400 35.780

FLAT RACK – 20’ e 40’

Cargoes of high weight or with irregular sizes, as well as project cargoes.

20' 40'
INTERNAL LENGTH (mm) 5.949 12.030
INTERNAL WIDTH (mm) 2.433 2.364
INTERNAL HEIGHT (mm) 2.271 1.949
MAXIMUM WEIGHT (kg) 30.000 35.562
TARE (kg) 2.600 4.995
CARGO (kg) 27.400 30.567

TANK – 20’

High-weight and irregular cargoes.

20'
INTERNAL LENGTH (mm) 6.058
INTERNAL WIDTH (mm) 2.438
INTERNAL HEIGHT (mm) 2.591
DOOR WIDTH -
DOOR HEIGHT -
CUBAGE (m3) 21.00
MAXIMUM WEIGHT (kg) 30.480
TARE (kg) 3.070
CARGO (kg) 27.410

Types of Air Containers
Click on the blocks for more information

LD-1

CODE ULD IATA AKC Contoured Container
KNOWN AS AVC | AVD | AVK | AVJ
FORKABLE AVY
CLASS Type 8
RECOMMENDED FOR B747 | B767 | B777 | MD-11
INTERNAL VOLUME 4,8m³
MAXIMUM GROSS WEIGHT 1,588kg
DIMENSIONS 233cm x 153cm x 162cm
(length x width x height)

LD-2

CODE ULD IATA DPE Contoured COntainer
KNOWN AS APA | DPA
FORKABLE DPN
CLASS Type 8D
RECOMMENDED FOR B767
INTERNAL VOLUME 3,4m³
MAXIMUM GROSS WEIGHT 1,225 kg
DIMENSIONS 156cm x 153cm x 162cm
(length x width x height)

LD-3 INSULATED

CODE ULD IATA RKN
CLASS Type 8
RECOMMENDED FOR A300 | A310 | A330 | A340 | B747 | B767 B777 | DC10 | MD11 | L1011
INTERNAL VOLUME 3,0m³
MAXIMUM GROSS WEIGHT 1,588 kg
TEMPERATURE CONTROL -20°c a +20°c
DIMENSIONS 200cm x 153cm x 162cm
(length x width x height)

LD-4

CODE ULD IATA ALP Rectangular Container
KNOWN AS ALD | AWD | AWZ | DLP
FORKABLE ALB | ALC | AWB | AWC
CLASS Type 8
RECOMMENDED FOR B767 | B777
INTERNAL VOLUME 5.7m³
MAXIMUM GROSS WEIGHT 2.449 kg
DIMENSIONS 153cm x 243cm x 162cm
(length x width x height)

LD-7

CODE ULD IATA XAW P1P with pallet fixed angle
CLASS Type 5
RECOMMENDED FOR All transport planes
INTERNAL VOLUME 14m³
MAXIMUM GROSS WEIGHT 5.000kg
DIMENSIONS 223cm x 424cm x 213cm
(length x width x height)

LD-8

CODE ULD IATA DQF
KNOWN AS ALE | ALN | DLE | DLF | DPQ | MQP
FORKABLE DPN
CLASS Type 6A
RECOMMENDED FOR B767
INTERNAL VOLUME 6.85m³
MAXIMUM GROSS WEIGHT 2.450 kg
DIMENSIONS 153cm x 317cm x 162cm
(length x width x height)

LD-3

CODE ULD IATA AKE Contoured Container
KNOWN AS AKE | AVA | AVB | AVC | AVK
FORKABLE AKN | AVN | DKN | XKN
CLASS Type 8
RECOMMENDED FOR A300 | A310 | A330 | A340 | B767 B777 | DC10 | MD11 | L1011
INTERNAL VOLUME 4.3m³
MAXIMUM GROSS WEIGHT 1.588 kg
DIMENSIONS 200cm x 153cm x 162cm
(length x width x height)

LD-11

CODE ULD IATA ALP Rectangular Container
KNOWN AS ALD | AW2 | AWD | AQZ | DWB | MWB
CLASS Type 6
RECOMMENDED FOR A300 | A310 | A330 | A340 | B747 | B777 DC10 | MD11 | L1011
COOLED VERSIONS RWB | RWD | RWZ
INTERNAL VOLUME 7.2m³
MAXIMUM GROSS WEIGHT 3.176 kg
DIMENSIONS 153cm x 317cm x 162cm
(length x width x height)

LD-6

CODE ULD IATA ALF Contoured Container
KNOWN AS AWD | AWF
FORKABLE AWC
CLASS Tipo 6W
RECOMMENDED FOR A300 | A310 | A330 | A340 | B747 | B777 DC10 | MD11 | L1011
INTERNAL VOLUME 8.9m³
MAXIMUM GROSS WEIGHT 3.175 kg
DIMENSIONS 153cm x 406cm x 162cm
(length x width x height)

AQ-6

CODE ULD IATA AMA Rectangular Container on P6P base
KNOWN AS AMF | AMG | AMK | AMP | AQA
CLASS Type 2
CLASSIFICATION M-1
RECOMMENDED FOR B747F | B747 Combi
INTERNAL VOLUME 17,5m³
MAXIMUM GROSS WEIGHT 6.804kg
DIMENSIONS 243cm x 317cm x 243cm
(length x width x height)

LD-9

CODE ULD IATA AAP Enclosed Pallet | P1P base
KNOWN AS AA2 | XAG | XAV
FORKABLE AKN | AVN | DKN | XKN
CLASS Type 5
RECOMMENDED FOR A300 | A310 | A330 | A340 | B747 | B767 DC10 | MD11 | L1011
INTERNAL VOLUME 9.1m³
MAXIMUM GROSS WEIGHT 4.624kg
DIMENSIONS 223cm x 317cm x 162cm
(length x width x height)

88" PALLET

CODE ULD IATA P1P
CLASSIFICATION 88' Pallet with net
RECOMMENDED FOR B747 | B767 | B777 | DC10
INTERNAL VOLUME 11,9m³
MAXIMUM GROSS WEIGHT B747 | DC10: 6.033kg | B777 DC10: 4.626kg | B767: 5.103kg Can be loaded on 96' (62cm) and 118'(300cm) on the freighters
DIMENSIONS 23cm x 317cm x 162cm
(length x width x height)

LD-26

CODE ULD IATA AAF
RECOMMENDED FOR B747 | B777 | DC10
MAXIMUM GROSS WEIGHT B747/DC10: 6.033 kg
B777/DC10: 4.626 kg
DIMENSIONS 318cm x 406cm x 163cm
(length x width x height)

LD-29

CODE ULD IATA AAU Contoured Container on P1P base
CLASS Type 5
RECOMMENDED FOR B747
INTERNAL VOLUME 14,2m³
MAXIMUM GROSS WEIGHT 6.033kg
DIMENSIONS 224cm x 318cm x 472cm
(length x width x height)

AQ-7

CODE ULD IATA AMD Contoured Container on P6P base
KNOWN AS AQA
CLASSIFICATION M1H
CLASS Type 2H
RECOMMENDED FOR B747 | B747 Combi
INTERNAL VOLUME 19.9m³
MAXIMUM GROSS WEIGHT 6.800kg
DIMENSIONS 317cm x 243cm x 243cm
(length x width x height)

A-2

CODE ULD IATA DDA
RECOMMENDED FOR B747 | B747F | DC8 | DC10 | A300/F
INTERNAL VOLUME 12.6m³
MAXIMUM GROSS WEIGHT 6.033 kg
DIMENSIONS 317cm x 223cm x 220cm
(length x width x height)

96" PALLET

CODE ULD IATA P6P 10ft pallet with net
KNOWN AS P6A | P 6C | P6Q | PMA | PMC
CLASSIFICATION LD-9
CLASS Type 2BG
RECOMMENDED FOR B747 | B767 | B777 | DC10 | MD11 | L1011
INTERNAL VOLUME 21.2m³
MAXIMUM GROSS WEIGHT 6.804kg Can be loaded on 96” (162cm) and 118” (300cm) on the freighters

HALF PALLET

CODE ULD IATA PLA half pallet with net
KNOWN AS PLB | FLA | P9A | P9B | P9P | P9R
CLASSIFICATION HP
CLASS Type 6
RECOMMENDED FOR Lower deck: B747 | B777
Main Deck: B707F | B727F | B737F
INTERNAL VOLUME 7.2m³
MAXIMUM GROSS WEIGHT 3.175kg
